antiballistic range of products alumil M9760
M9760
belongs to Alumil's antiballistic range of products. It is a robust thermal-break system for fixed and tilt-and-turn windows as well as for entrance doors.

The profiles’ interconnection was designed so that the system could carry heavy duty patio doors and window. The door weight can be up to 150 Kg and the window sash weight up to 130 Kg.

M9760 includes very thick profiles and solid aluminium outer shield.  The system has been certified for level FB4 antiballistic protection from the Hellenic Defense Systems' laboratory, which is the only recognized defense laboratory in Greece by NATO.


Some of its benefits of this antiballistic system are:
•   Antiballistic protection of FB4 level (for “Magnum 0,357”, “Remington 0,45”)
•   The system uses heavy duty hinges and special security glazing bead
•   Leaf weight up to 150 Kg for entrance doors and 130 Kg for windows
•   Glass thickness up to 50 mm

PROFILES CHARACTERISTICS

Frame depth: 87 mm
Sash depth: 94,5 mm
Minimum visible face width: 116 mm
Minimum visible width (Τ-profile):
Sash mechanism weight limit: 130 - 150 Kg
Glass thickness: 30 to 50 mm
Cross section thickness: 1,5 -15,0

SYSTEM CHARACTERISTICS

Type of system: Insulated
Uf: 2.44 – 3.6 W/m2K
Exterior aesthetics: Flat
Glazing method: Glazing Bead
Type of thermal insulation: 20 - 24 mm polyamide
Mechanism: European Groove
Typologies: Fixed light, Single & Double Tilt & Turn window, Single & Double  leaf entrance door

Certifications
Anti-ballistic protection
Evo - PYRKAL

Galleria applicazioni

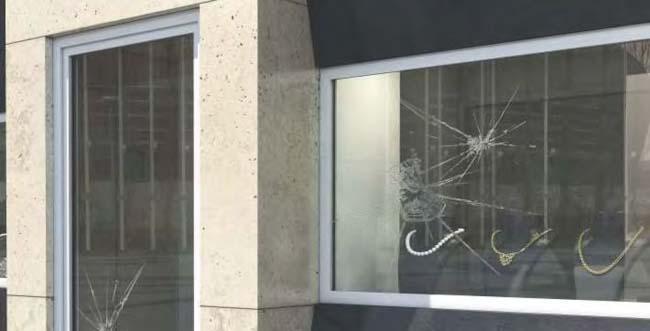

  • m9760 photo
