M15000BS is an anti burglar opening system for main entrances and safety cages. It is certified with burglary protection WKII by the internationally renowned institute IFT Rosenheim.

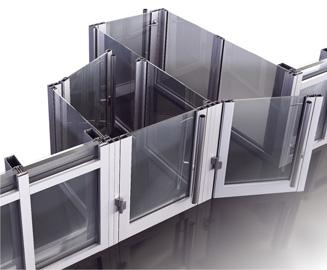

It is suitable for application in banks and public buildings as entrance doors or safety cages.
The new system is characterized by ease of manufacturing while working with high-tech automation security. The system’s main characteristics are:
• Creates single entrance doors
• Ideal option for banks and public buildings where the need of security is increased
• Easy construction which can combine with high tech automation mechanisms
• Satisfy the requirements for anti burglar resistance of WK3 level (certified at the Ift Rosenheim institute)

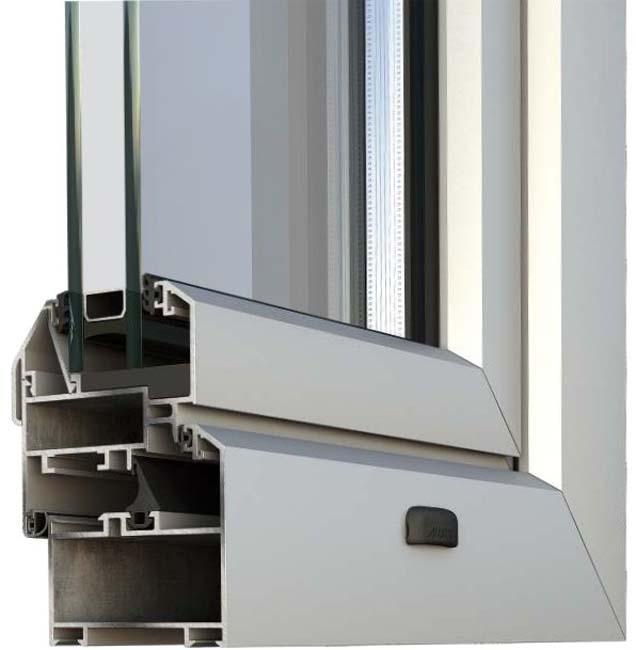

PROFILES CHARACTERISTICS
• Frame depth: 50 mm
• Sash depth: 50 mm
• Minimum visible face width: 156,7 mm
• Minimum visible width (Τ-profile): 90 mm
• Sash mechanism weight limit: 150 Kg
• Glass thickness: 24 - 40 mm
• Cross section thickness: 1,6 - 2,5
SYSTEM CHARACTERISTICS
• Type of system: Uninsulated
• Uf: 7
• Exterior aesthetics: Flat
• Glazing method: Glazing Bead
• Type of thermal insulation: 34 mm polyamide
• Mechanism: GU
• Typologies: Entrance Panic Doors, Fixed lights
Certifications
Air permeability – Watertightness – Resistance to wind load – Functional check
IFT Rosenheim
Anti Bulgar protection WKIII
IFT Rosenheim
Panic doors
IFT Rosenheim
Smoke doors (single sash)
IFT Rosenheim
Smoke doors (double sash)
IFT Rosenheim
