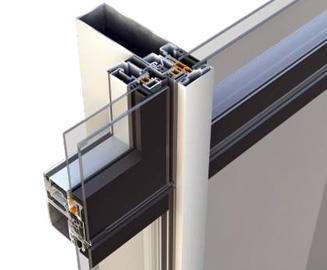

M6 is a thermal insulated curtain walls system which is ideal for robust constructions, for large frames’ fabrication and covers all architectural requirements.
• 55 mm width of mullions and transoms
• Thermal insulation up to Uf=1,5 W / m²K, making the system ideal for all climate regions
• Big variety of mullions for high wind loads
• A variety of designs for the visible aluminium covers

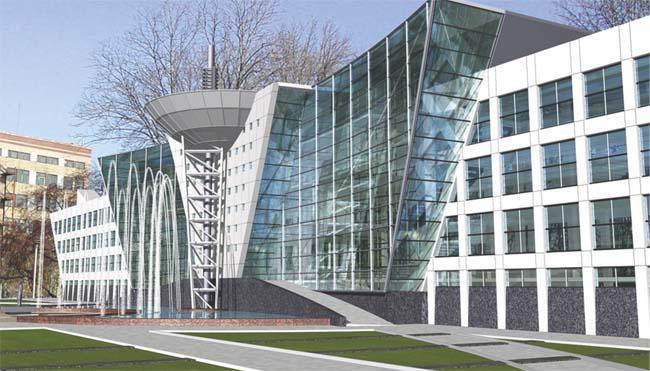

• Structural glass version without aluminium covers, with the same mullions and transoms
• All kind of opening windows can be added to the curtain wall (parallel projected, top hung, inwards tilt & turn, concealed sash tilt & turn)

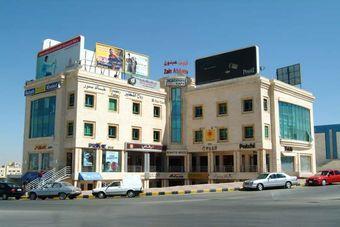

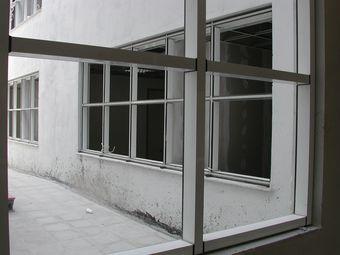

• All kind of surfaces can be constructed (inclined, polygonal)
• Combines with all types of doors from the Alumil M11000
PROFILE CHARACTERISTICS
• Exterior visible width: 55 mm
• Mullion depth: 65 – 223 mm
• Transom depth: 30 – 179 mm
• Glazing: Stick type with EPDM gaskets
• Cross section thickness: 10mm
• Glass thickness: Up to 50mm
• Mullions max inertia: Ix=2082 Iy=183 cm4
• Transoms max inertia: Ix=568 Iy=64 cm4
• Max inertia Mullion and Insert: Ix=32 Iy=105 cm4
SYSTEM CHARACTERISTICS
• Type of system: Insulated
• Uf: from 1,5 – 3,3 W / m²K
Exterior aesthetics
1. Standard
• With cover cap 55 mm
• With horizontal and vertical cover (standard)
• With horizontal cover (linear horizontal)
• With vertical cover (linear vertical)

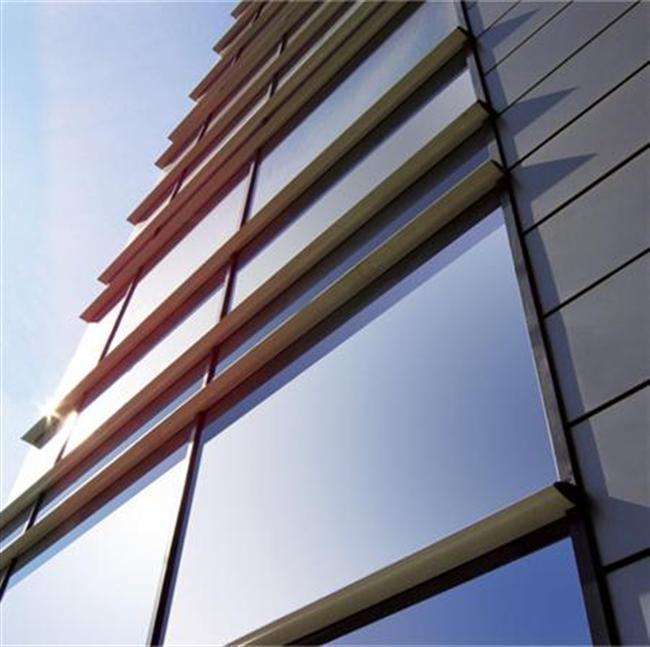

2. Structural
• Hinged,
• Top hung,
• Parallel projected,
• Inwards hinged
Certifications:
Air permeability – Watertightness – Resistance to wind load – Functional check
IFT Rosenheim
Thermal Insulation
IFT Rosenheim
Air permeability – Watertightness – Resistance to wind load – Functional check - Resistance check

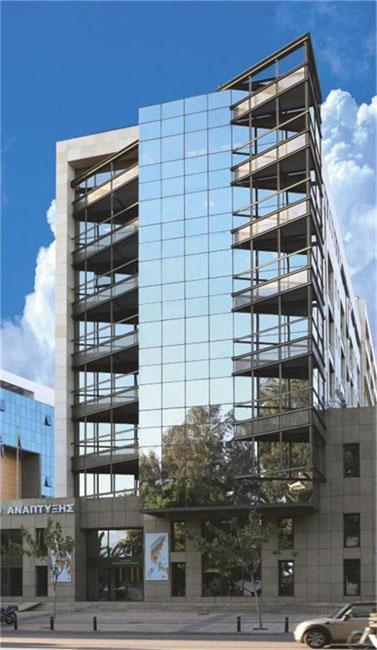

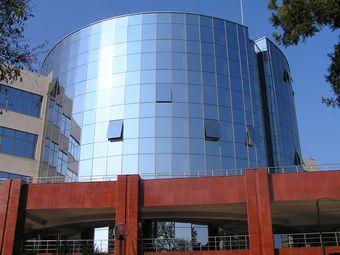

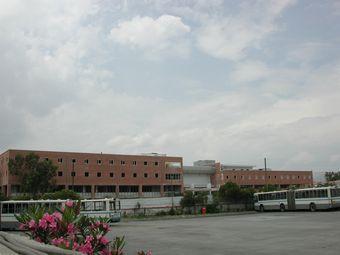

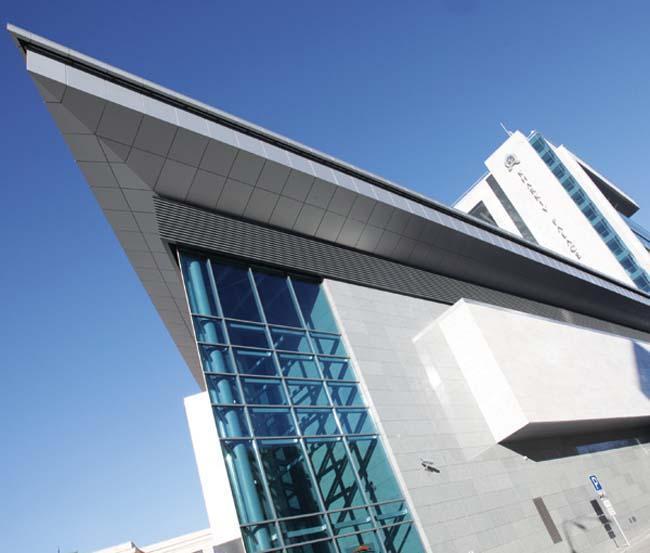

Galleria applicazioni
